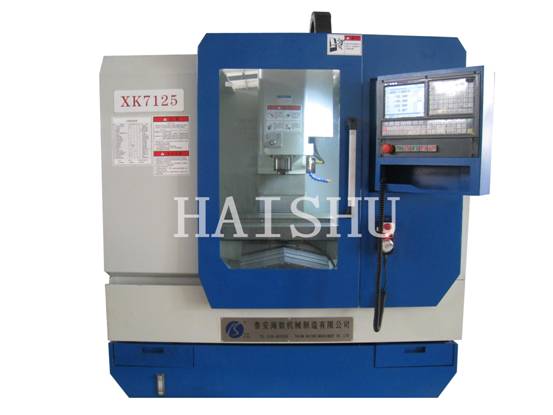

XK7125A CNC milling
|
技術參數 |
Specifications |
XK7125 |
XK7125A |
|
工作台 |
Table size |
250×800mm |
250×800mm |
|
縱向行程 |
Longitudinal travel |
400mm |
400mm |
|
橫向行程 |
Cross travel |
300mm |
300mm |
|
垂直行程 |
Vertical travel |
400mm |
400mm |
|
主軸功率 |
Spindle motor |
2.2KW |
2.2KW |
|
主軸轉速 |
Spindle range |
4500r/min |
6000r/min |
|
主軸錐度 |
Spindle taper |
NT30 |
NT30 |
|
主軸端麵至工作台麵距離 |
Spindle nose to table surface |
105-500mm |
105-500mm |
|
主軸中心至立柱距離 |
Spindle center to column surface |
320mm |
320mm |
|
定位精度 |
Positioning accuracy |
0.02mm |
0.02mm |
|
重複定位精度 |
Repeatability accuracy |
0.01mm |
0.01mm |
|
機床重量 |
Machine weight |
2200Kg |
2300Kg |
|
外形尺寸 |
Overall dimensions （L×W×H） |
2000×1800×2260mm |
2000×1800×2260mm |
